The New Innovative Patented Flat Plate Solar Collector

High efficient absorber, excellent insulation layers and seamless casing work together to create a perfect high performance flat plate solar collector.

Inquiry

DESCRIPTIONDOWNLOAD

The New Innovative Patented Flat Collector

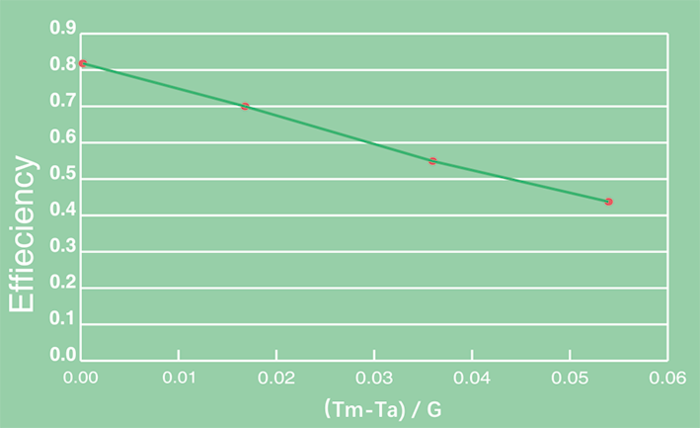

Efficiency Data Tested by Third Party Lab:

η0G=0.819

Aperture area used for curve:1.904m2

Solar Irradiation level: c. 900W/m2

* Test result from certified third-party laboratory.

Feature & Advantage:

1) Double layer of high density eco-friendly PU foaming & whole packaged fiber glass to prevent heat loss

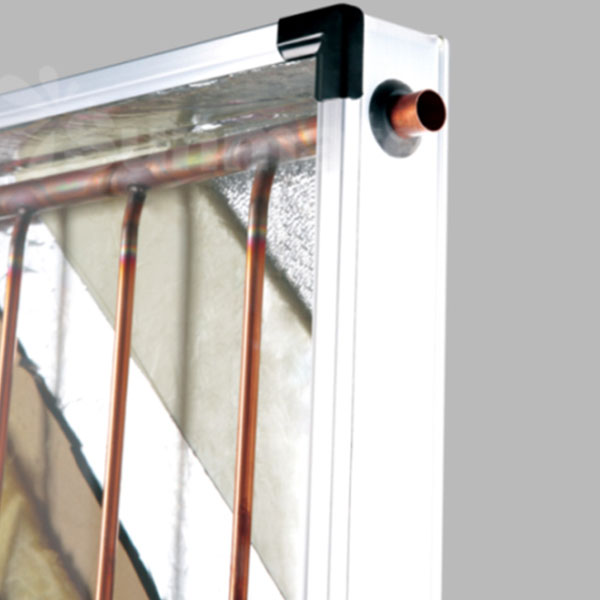

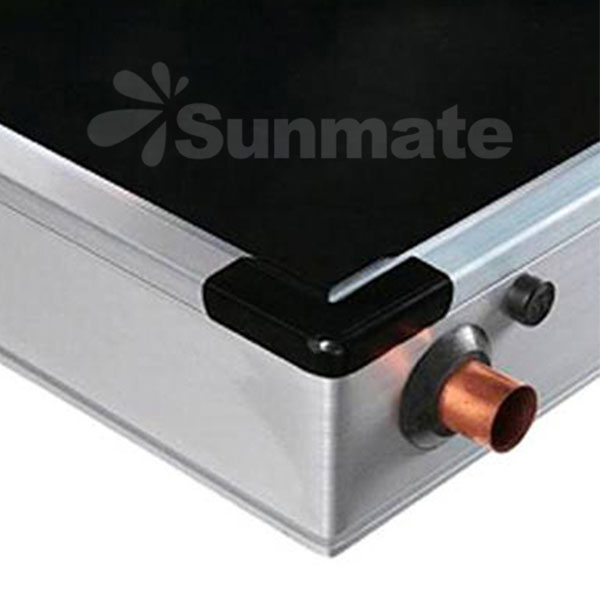

2) The special bending extrusion aluminum frame provides a strong construction with perfect waterproofness

3) Full back embossed aluminum plate guarantee anti-corrosion for long service life

4) Low-iron tempered textured glass provides excellent strength, anti-reflective surface with 92% transmittance

5) High efficient absorber, excellent insulation layers and seamless casing work together to create a perfect high performance flat plate solar collector

6) Casing frame is treated by anodization for anti-corrosion

7) Have passed EN12975-1, 2, ISO9806-1 tests

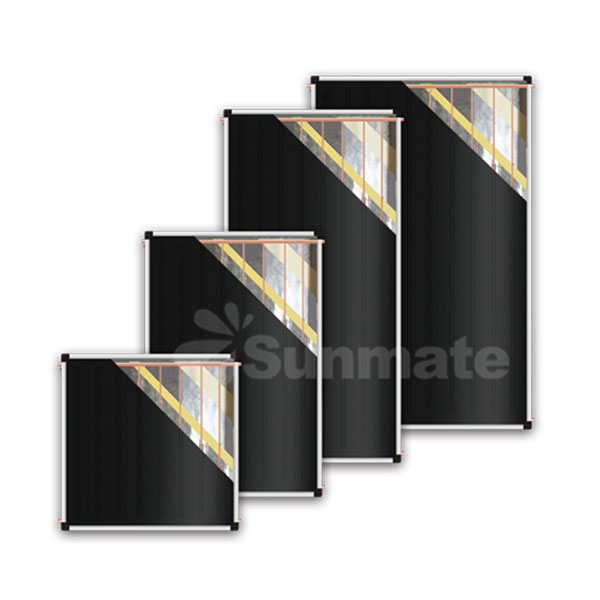

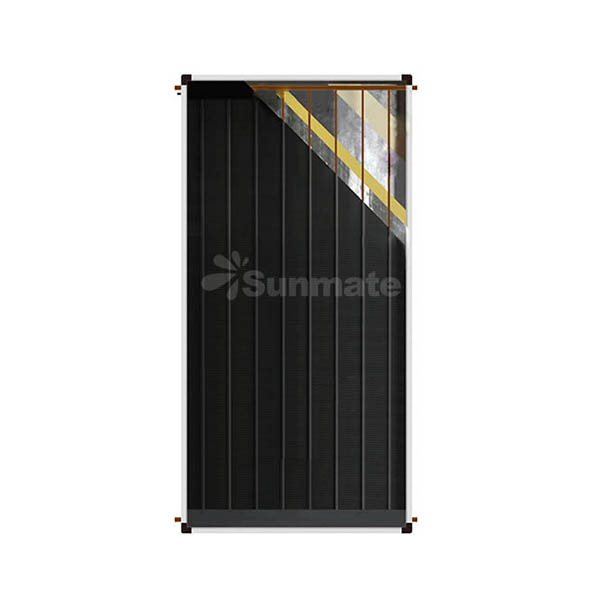

MODEL NO. & SPECIFICATION		STE-C-AO-F	STE-C-BC-P	STE-C-BS-P	STE-C-BS-N
Dimensions	Dimensions (mm)	2000x1000x80 or 2000x1250x80
Absorber	Header tube dimension(mm)	Φ19 / Φ22 / Φ25 * 0.6 / 0.91mm
	Riser tube dimension(mm)	Φ10 / Φ80.6mm8 pcs or 10 pcs
	Max. working pressure	0.8Mpa
	Absorber coating	Anodic Oxidation	Black Chrome	Blue Selective	Blue Selective
	Absorber material	Aluminium Fusion Strips	Full Aluminium Plate	Full Aluminium Plate	Copper Plate
	Absorber thickness	0.5mm	0.4mm	0.4mm	0.2mm
	Welding way	Fusion Bonding	Packaged Ultrasonic Welding		Normal Ultrasonic Welding
Insulation	Layer One	10mm thick PU Forming of 40kg/m3 Density
	Layer Two	30mm thick Full Packaged Fiber Glass of 24kg/m³ Density
Glazing	Transmittance	92%
	Material	Low-iron Tempered Textured Glass / 3.2mm Thickness
Casing	Frame	Special Bending Design Extrusion Aluminium Frame
	Back plate	Embossed Aluminium Plate
	Frame color	Silver/Bronze/ Black
	Sealing gasket	Silicone glue
